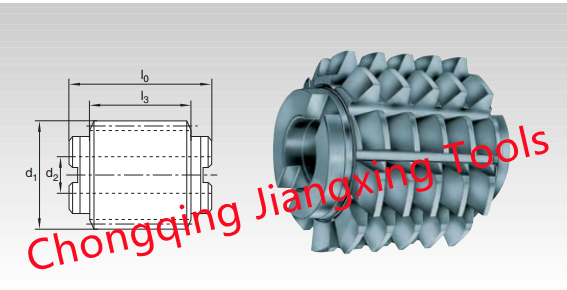

HSS gear hobber cutter with relief ground DIN 8002 A
2021-11-11 14:22:43
jiangxingTools
2944
HSS gear hobber cutter with relief ground DIN 8002 A
solid-type hobs for spur and helical gears to module pitch
20° pressure angle, for finishing use
basic profile II to DIN 3972, quality grade A to DIN 3968
single start right-handed, with drive slot

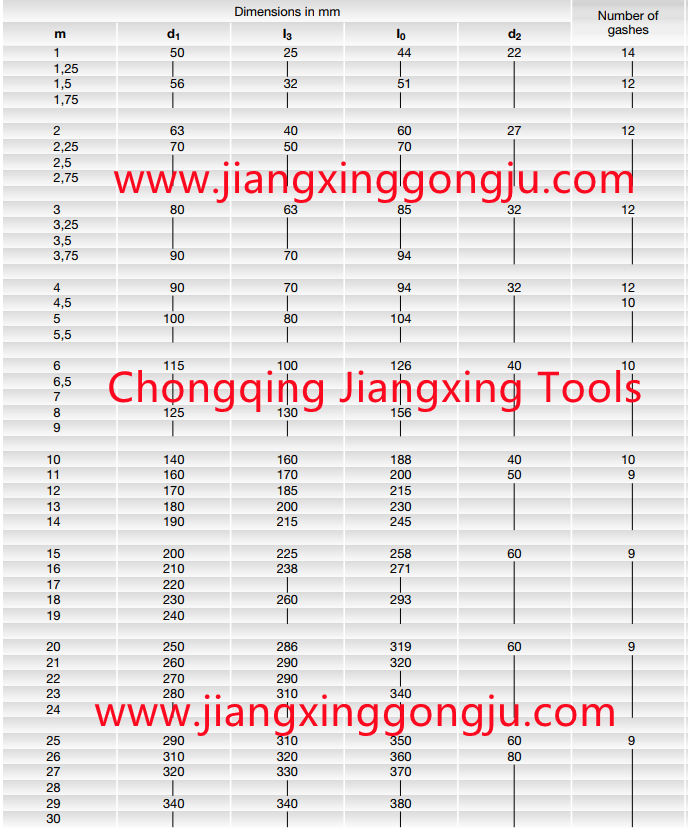

Common sizes for module gear hobber cutter with relief ground DIN 8002 A as following；
All the crew of JXGJ will serve gear hobber cutters with best quality, competitive price, best delivery for our valuable customers. We look forward to your continued interest on our gear hobbing cutter.
